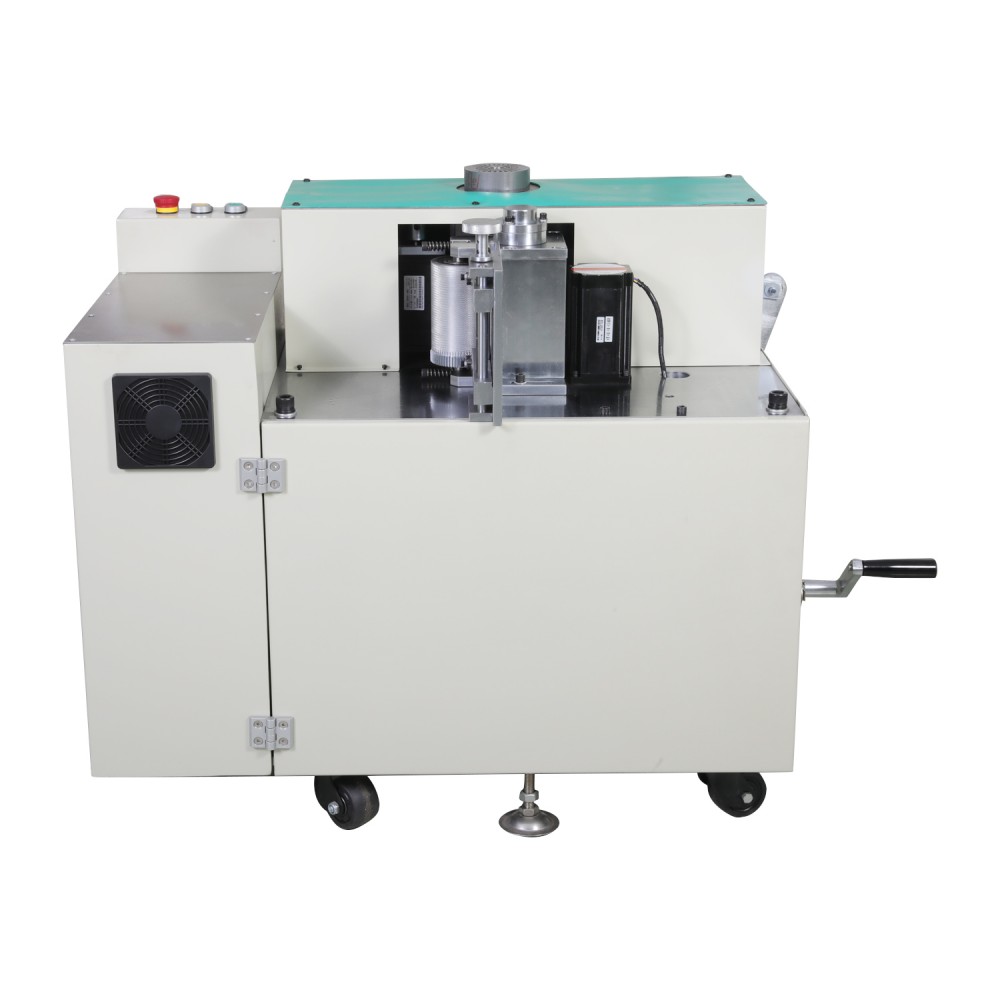

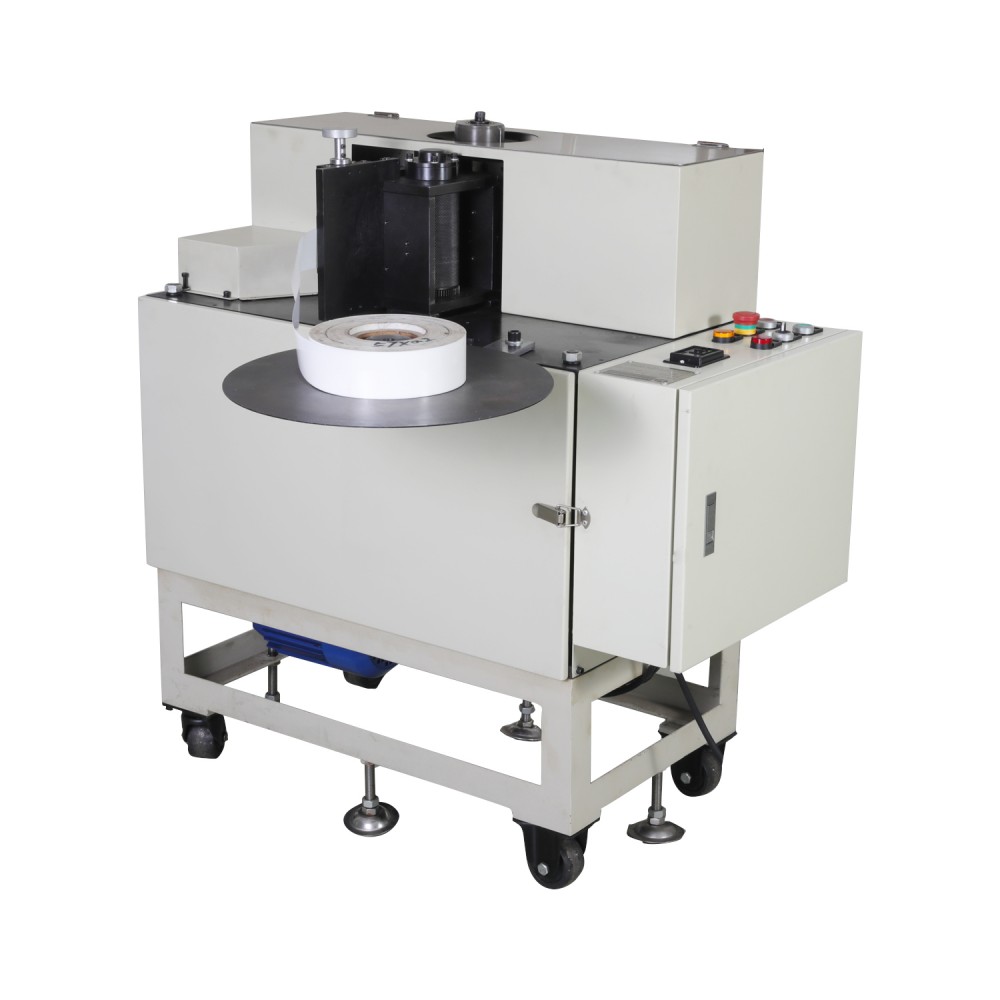

Multi-slot Paper inserting machine/ Paper inserting machine
This machine is specially designed for stators with multiple slot types. It can complete the entire paper-inserting process in one go using a single roll of insulation paper, making it ideal for processing fan motors, variable-frequency motors, water pump motors, and various small general-purpose motors. For stators with different slots, the machine automatically adjusts the paper circumference, cuts, crimps, and inserts the insulation paper—no repeated manual adjustments are required throughout the process.

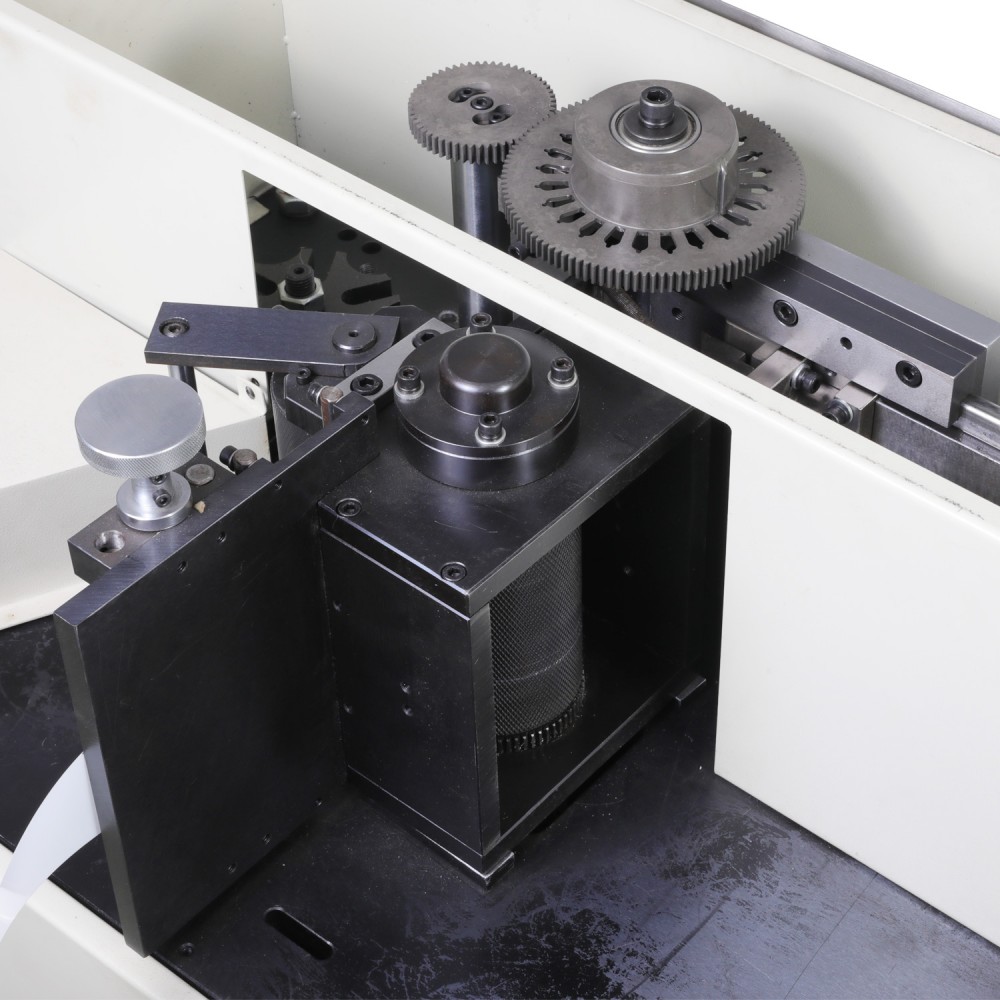

Driven by a servo motor, it ensures precise paper feeding and width control, delivering high accuracy and stable operation. All process parameters can be easily set via the user-friendly HMI (Human-Machine Interface). The forming dies automatically switch to match different slot types, enabling fast adaptation to diverse processing requirements.
The machine is simple to operate, low in noise, fast in paper inserting, and highly automated. It guarantees neatly formed insulation paper and accurate insertion, while reducing setup time and labor costs. It flexibly meets the demands of multi-variety, small-batch, and multi-slot stator production, effectively improving production consistency and efficiency. It is the ideal automatic equipment for motor manufacturers to achieve efficient and reliable insulation processing.
Features
1.Suitable for stators with multiple slot types, automatically adjusting circumference, cutting, crimping and inserting paper, one machine for versatile use.
2.Completes paper inserting with one roll of insulation paper in a single process, with simplified workflow and high production efficiency.
3.Servo-driven paper feeding with accurate width control, high precision, stable operation, and automatic die switching for different slots.
4.User-friendly HMI for easy operation and intuitive parameter setting, enabling quick machine adjustment.
5.Low noise, high speed, and high degree of automation, greatly reducing labor cost.
