3 Head 6 Working Stations Coil Winding Machine

Short Description:

Launch of 3-head 6-workstation coil winding machine: revolutionizing coil winding automation
In recent years, the coil winding industry has made significant progress with the introduction of more and more innovative and efficient technologies. These advancements include the striking 3-head, 6-station coil winding machine. This automatic winding machine revolutionizes the coil winding process, delivering unparalleled precision, speed and versatility.

Product Detail

Product Tags

The 3-head 6-station coil winding machine is designed for optimal efficiency and is capable of winding multiple coils simultaneously, significantly increasing productivity. Its six workstations ensure seamless operation, enabling continuous production without any major downtime. Able to wind up to three coils simultaneously at each station, the machine is proving to be a game-changer for high-volume coil production.

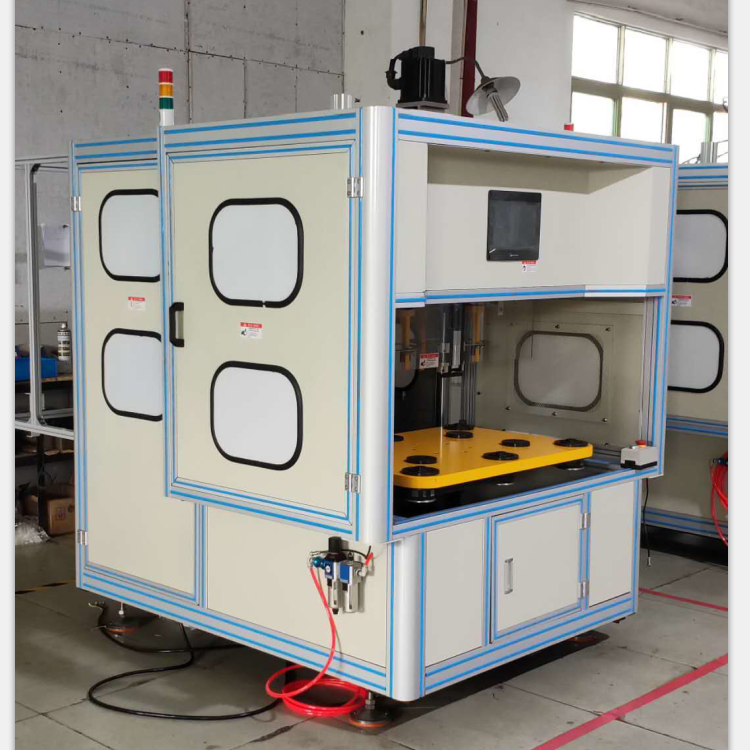

3 head 6 working stations coil winding machine

One of the standout features of this machine is its ability to neatly suspend the coil within the spool. This unique feature makes it particularly suitable for stator windings with high slot fullness and small slots. Often, these challenging winding requirements create significant challenges for traditional coil winding machines. However, the 3-head, 6-station winding machine can handle these demanding applications with ease, ensuring precise and accurate winding every time.

In addition to its superior winding capabilities, the machine offers a range of advanced features that enhance its usability and versatility. The winding method automatically skips sections, cuts wires, and indexes without manual intervention, simplifying the entire winding process. In addition, the human-machine interface allows the operator to set parameters and adjust the winding tension according to specific requirements, ensuring optimal winding results.

3 head 6 working stations coil winding machine
3 head 6 working stations coil winding machine

One of the most significant features of the three-head and six-station winding machine is that it can meet the winding requirements of various motor coils. Whether it is a 2-pole, 4-pole, or 6-pole motor coil, this machine can easily adapt to different winding specifications. This flexibility and adaptability make it ideal for manufacturers working with different motor types and configurations.


The machine features continuous and intermittent winding capabilities, providing unparalleled flexibility. Whether the application requires seamless continuous winding or requires specific spacing, the 3-head 6-station winding machine can easily meet specific requirements. This ability to adapt to a variety of winding needs is a testament to its design and focus on customer satisfaction.

As the demand for high-quality, efficient coil winding continues to grow, 3-head 6-station coil winding machines are becoming an indispensable tool for manufacturers around the world. Its advanced features, precise winding capabilities and unparalleled productivity make it a truly revolutionary machine in the coil winding industry.

In summary, the 3-head 6-station coil winding machine represents a major advancement in automatic coil winding technology. With its ability to wind multiple coils simultaneously, its precise winding method, and its flexibility to meet a variety of winding requirements, this machine surpasses traditional coil winding machines. Whether it is a high slot fullness stator or a heteropolar motor coil, this machine is an indispensable asset for manufacturers seeking efficiency and quality in their coil production processes.


1. It can meet the winding requirements of various motor coils
2. The coil can be neatly hung inside the wire cup
3. The winding method automatically hops, cuts, and indexes, all at once, without manual intervention




M o d e l 3 head 6 working stations coil winding machine
Suitable stack height φ20- φ100mm
Wire diameter range 0.15-1.0mm
Ma.Winding speed 1500-3000
Suitable motor poles 2、4、6、8
Air Pressure 0.5-0.7MPA
Power Supply 380V/50/60Hz
Power 7.5KW
Weight 2500Kg
Dimension(LxWxH) 1700x1200x2000mm


1. What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.

2.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

3.What is the average lead time?
For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when
(1) we have received your deposit, and
(2) we have your final approval for your products. If our lead times do not work with
your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.

4.What kinds of payment methods do you accept?
You can make the payment to our bank account: 40% deposit in advance, 60% paid before delivery.
